Description:

Double Flange Guide Wheels

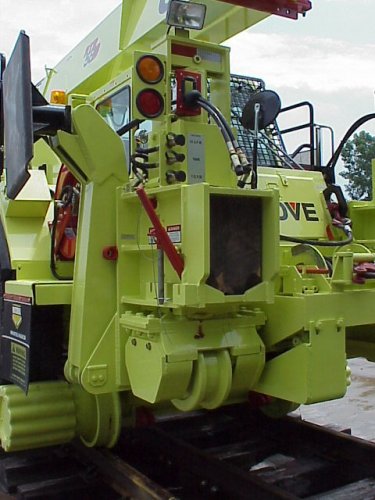

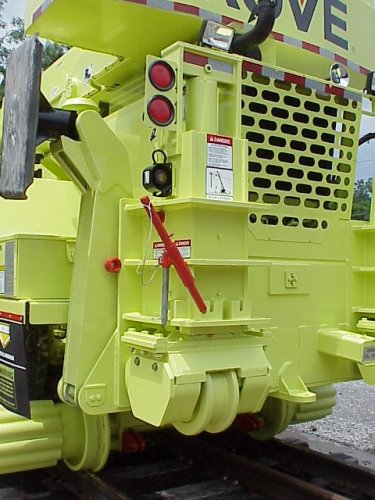

Double Flange Guide Wheels - RT Crane   Double Flange Guide Wheels are used on rail laying cranes to guide the crane as new rail is being laid into tie plates.

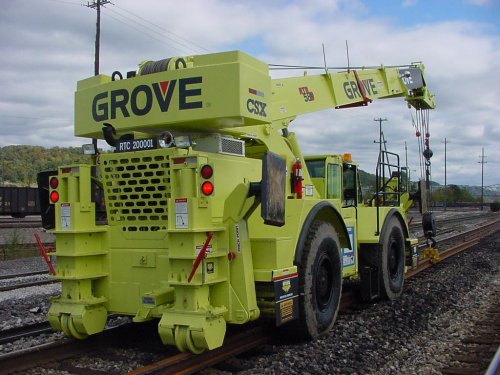

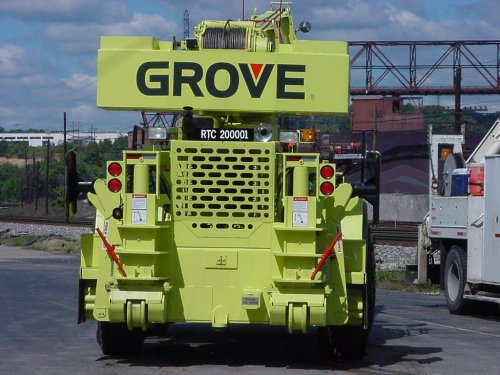

The guide wheels are mounted on all four corners of the crane. The wheel assemblies are adjustable left to right to set rail gauge. The spring loaded guide wheels exert 5000 lbs of force on the rail to force it into the tie plates.



Once the boom of the crane is set with a Mitchell RT-103 Rail Threader the operator simply drives forward and the new rail is seated into the tie plates.



Available options:



Bumping Blocks

Bolt-on tool holder
